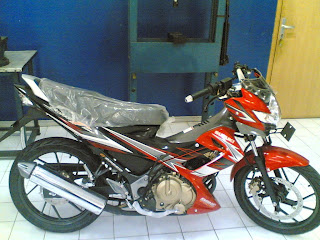

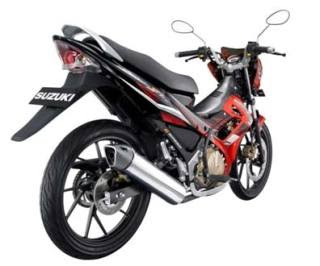

Specification Of New Suzuki Satria FU 150

Specification Of New Suzuki Satria FU 150

New Suzuki SatriaNew Suzuki SatriaNew Suzuki SatriaNew Suzuki Satria
Latest Price for New product : Rp. 18.450.000,-

SPECIFICATIONS:

MACHINE

Type: 4-No, DOHC, SACS air cooling, 4-valve
Number of Cylinders: 1 (one)
Cylinder diameter: 62.0 mm
Step Piston: 48.8 mm
Fill cylinder: 147 cc
Comparison Compression: 10.2: 1
Maximum power: 11.7 ps / 9500 rpm
Maximum torque rpm 12.4 Kgm/8500
Carburetor: Mikuni BS 26-187
Air Filter: Paper Type
Starter System: Foot & Power
Lubrication system: Soaking Oli

DIMENSIONS & WEIGHT

Overall length: 1945 mm
Overall Width: 650 mm
Height overall: 980 mm
As the distance between wheels: 1280 mm
Distance Machine To Land: 140 mm
Sitting high place: 764 mm
Empty weight: 106 kg

FRAMEWORK

Suspension Front: Teleskopik, bearings Oli
Rear Suspension: Sway Arm, bearings Oli
Rudder angle: 45 ° (left and right)
Turn Radius: 2.0 m
Brakes Front: Disc
Rear brake: Disc
Front Wheel Size: 70/90 - 17 38P
Rear Wheel Size: 80/90 - 17 44P

Electricity

Ignition system: CDI
Spark plug: NGK DENSO CR8E or U24ESR-N
Accu: 12V 2.5 Ah 10 HR

CAPACITY

Fuel tank: 4.9 Liter
Engine oil: 1,000 ml
With oil filter replacement: 1100 ml

TRANSMISSION

Clutch: Manual type wet multiple plates
Transmission: 6 Acceleration
The displacement direction Teeth: 1 down, 5 to top
Chain Drive: DID 428 DS, 122 eyes
